Commutator Don Jig Saw

Ana amfani da Commutator don motar Jig Saw. NIDE ƙwararriyar masana'anta ce kuma mai siyarwa a China. Kamfanin masana'antar sarrafa kayan aikin mu ya rufe yanki sama da eka 5,000. Muna da cikakkiyar ƙwarewar fitarwar injin motsa jiki da kuma samar da nau'ikan masu tafiya daban-daban, gami da nau'in ƙugiya, nau'in tashi, nau'in harsashi, nau'in jirgin sama, Kuna iya samun tabbacin siyan Commutator Don Jig Saw daga masana'antarmu kuma za mu ba ku mafi kyawun siyarwar bayan-sayar. sabis da bayarwa akan lokaci.

Aika tambaya

Bayanin Samfura

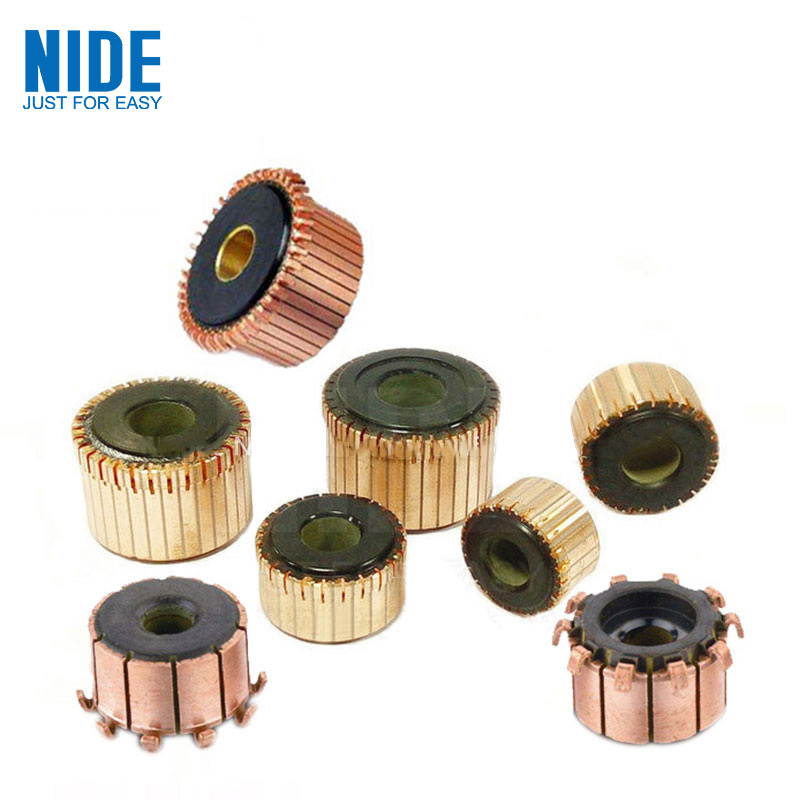

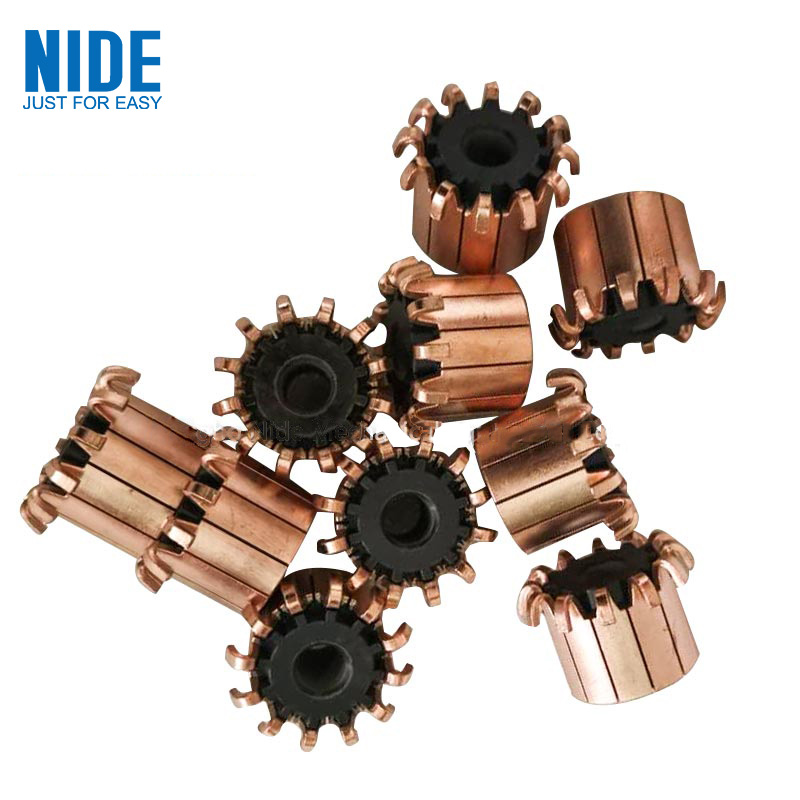

Commutator don Jig Saw

1.Product Gabatarwa

An ƙera wannan mashin ɗin na musamman don injin jig saw, ta amfani da kayan aiki masu inganci, tare da kyakkyawan aiki, ƙaramar hayaniya, da tsawon sabis.

2.Product Parameter (Tallafi)

Kayayyaki	0.03% ko 0.08% sliver jan karfe ko musamman
Girma	Musamman
Nau'in commutator	Nau'in ƙugiya/Nau'in Raiser
Aikace-aikace	shafi masana'antar kera motoci, kayan aikin wuta, na'urorin gida, da sauran injina
Kunshin	Ya dace da sufuri na ƙasa da na teku
Ƙarfin samarwa	1000000pcs/month

Model No.	OD (mm)	ID (mm)	Jimlar tsayi (mm)	Tsawon sashi (mm)	Hook/Riser dia. (mm)	Bar No.
S-02001	37.5	Ï†13	24	20.5	38.5	32
S-03002	15.75	Ï†13	11.25	9.5	16	24
S-03003	24	Ï†9	17	14	25	24
S-03003B	24.5	Ï†10	17.5	14	25.5	24
S-03003C	24.5	Ï†10	17.5	14	25.5	24
S-02004	24	Ï†9	15	13	24.5	24
S-03004A	23.2	Ï†9	15	13	24	24
S-03005	24	Ï†9	17	14	25	24
S-03005A	24	Ï†9	17	14	25	24
S-03006	37.5	Ï†13	26	23	38.5	32
S-03007	25.5	Ï†10	17	14	26.5	24
S-03007B	25.5	Ï†10	17	14	26.5	24
S-03008	23.5	Ï†9	14	12	24	24
S-03009	24	Ï†9	16.6	14	29	24
Saukewa: DZQD-RZ32-010	28.5	Ï†12	17.5	16	34.3	24
S-03011	23.5	Ï†9	17.5	14	28	24
Saukewa: DZQD-RZ32-012	23.5	Ï†10	18	16.4	28.5	24
S-03013	23	Ï†8	16	14	23.5	24
S-03014	28.5	Ï†11	20	17	29.5	24
S-03015	22.5	Ï†9	17.5	17.2	30	10
S-03016	28	Ï†14	20	19.2	36.8	12
S-03016A	28	14.2	20	19.2	36.8	12
S-03017	28.5	Ï†9	17.5	15	29.5	24
S-03018	34.3	Ï†13	22	20.5	41.5	24
S-03019	24.5	Ï†10	17.5	14	25.5	24
S-03019A	24.5	Ï†10	17.5	14	25.5	24
S-03020	28.5	Ï†11	17	14	29.5	24
S-03021	20.5	Ï†10	18	13.5	30.5	12
QZQC-RZ12-022	20.5	Ï†10	17.8	13.5	26	12
S-03024	40.4	Ï†13	24	20	42	50
S-03025	23.2	Ï†8	17.5	17	30	12
QZQC-RZ32-026	20.2	Ï†8	14.6	14.1	25	16
Saukewa: QZQC-RZ32-026A	20.2	Ï†8	14.6	14.1	25.5	16
QZQC-RZ12-027	18.9	Ï†8	14.5	12.8	24	12
S-03028	15.5	Ï†7	11.4	11.7	20	9
S-03030	22.5	9.2	18	17.7	30.6	10
S-03031	22.5	Ï†12	21	20.5	30.5	10
S-03032	28.5	Ï†12	17.5	14.5	29.5	24
S-03033	30	Ï†10	20	17	35.5	24
S-03033A	30	Ï†11	21	18	36	24
S-03033	30	Ï†11	21	18.5	36	24
S-03033C	30	Ï†11	21	18.5	36	24
Saukewa: JZQC-RZ32-037	22	Ï†8	16	14.2	27	16
S-03038	35.4	Ï†14	42.5	38	48	23
S-03038A	35.4	Ï†14	42.5	38	48	23
S-03044	22.5	Ï†10	17.5	17	28.5	10
S-03045	35.5	15.75	23.5	20	46	19
S-03046A	37.5	Ï†14	42	38	49.5	23
S-03046	37.5	Ï†14	42	38	49.5	23
S-03047	45	Ï† 15.5	50	44.4	62	21
S-03048	34	Ï† 10.2	38.5	34.5	46.5	23
S-03050	15	Ï†5	16.5	15.5	20	12
