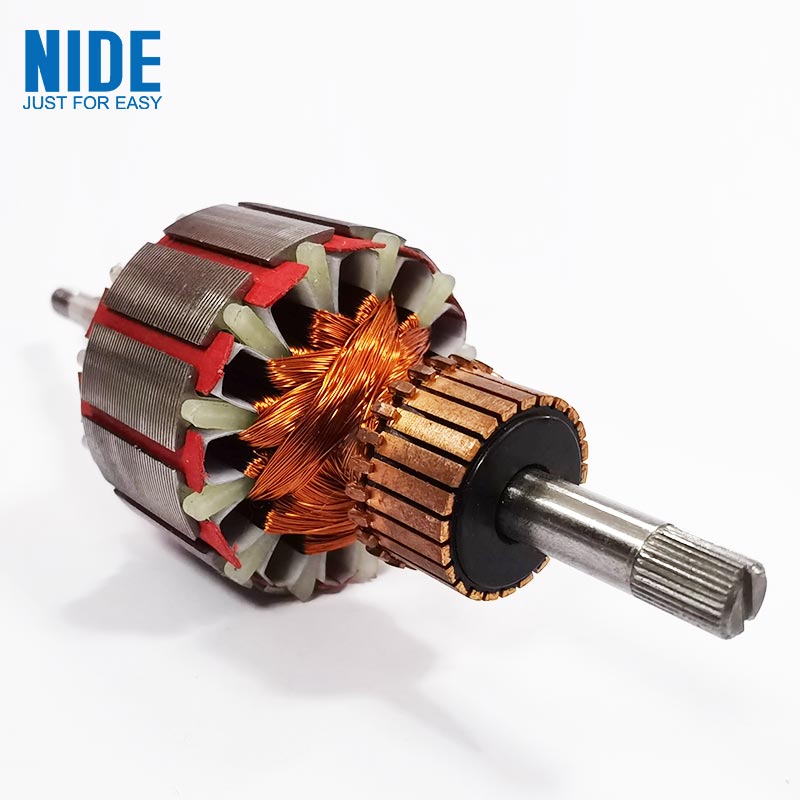

Copper Shell Motor Commutator Don DC Motar

Copper Shell Motor Commutator Don DC Motar

Muna samar da fiye da nau'in commutator daban-daban na 1200, gami da nau'in ƙugiya, nau'in riser, nau'in harsashi, nau'in tsari, kama daga OD 4mm zuwa OD 150mm, wanda ya shafi masana'antar kera motoci, kayan aikin wutar lantarki, kayan aikin gida, da sauran injina. Kamar injin dinki na gida da na'urorin dinki na masana'antu, injin tsabtace ruwa, injin wanki, bushewar gashi, mahaɗa, injin ruwan 'ya'yan itace, whisk, juicer, soya, da sauran kayan aikin gida.

Har ila yau, muna ba da sabis na gyare-gyare na commutator don abokan ciniki, da kuma keɓance masu jigilar kayayyaki na siffofi da kayan daban-daban bisa ga bukatun abokin ciniki. Idan kuna buƙatarsa, da fatan za ku iya tuntuɓar mu.

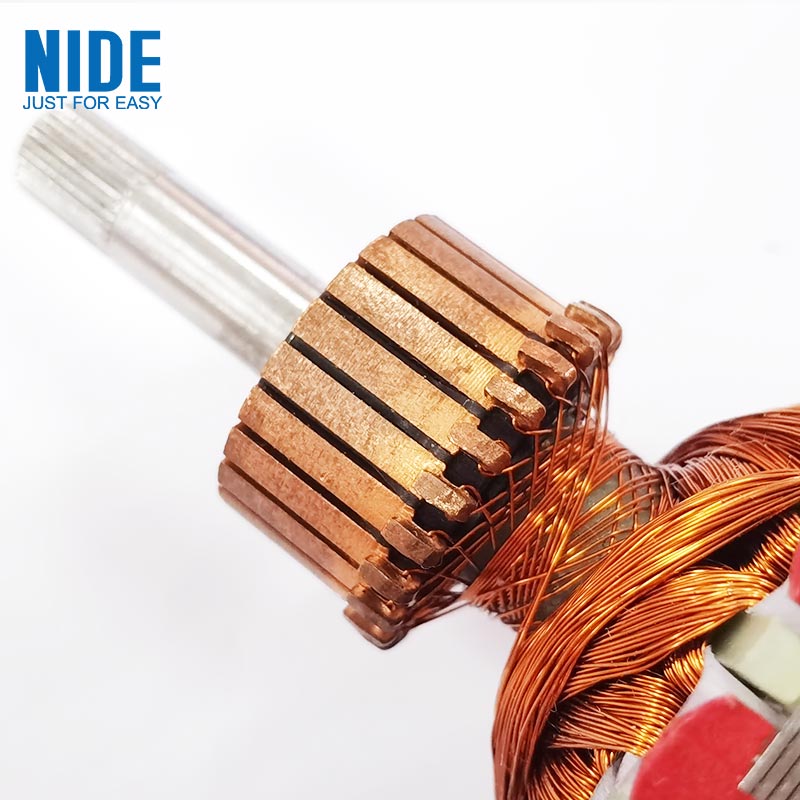

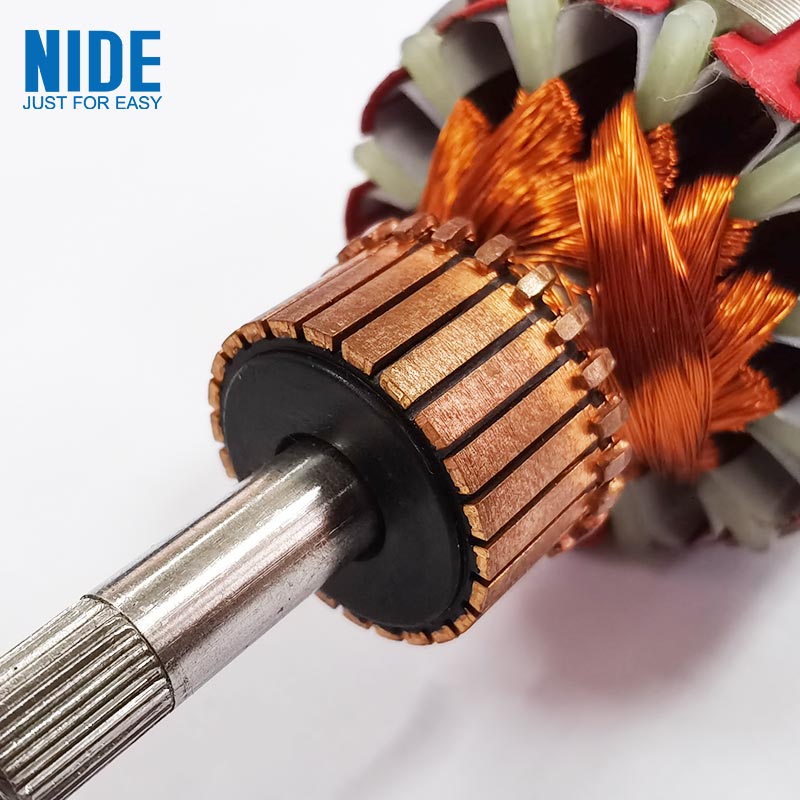

Cikakkun Masu Canjin Mota na Hook

Fasalolin ƙugiya Commutator

1. Guduro surface babu fasa, kumfa, da dai sauransu.

2. Dielectric ƙarfi: bar-bar 500VAC, 1s, bar-shaft 4800VAC, 1MIN, babu rushewa ko flash

3. Spin gwajin: 180 °, 33000rpm, 3min, OD karkata 0.01max, bar-shaft sabawa 0.005max

4. Juriya na rufi: zafin jiki na dakin, 500VDC mega mita, juriya mai rufi> 100MΩ

5. Yarjejeniyar haƙuri mara alama tare da GB/T1804-m

Copper Shell Motor Commutator Don DC Motar
